Product Details:
Payment & Shipping Terms:
|
Blade Length:: | 6in, 6 1/2in, 10in | Customized Support: | OEM, ODM |
---|---|---|---|
Size: | 205/230/255/305/355/405/455/500/550/600 | Color: | Picture Shows |
Grade: | Industrial | Product Name: | TCT Circular Saw Blade |
Feature: | High Speed.Straight Smooth Edge | Packing: | Standard Packing |
Advantage: | High Efficiency, Low Noise, High Speed,Excellent Wear Resistance, Heat Resistance, Long Linfespan.electricity Saving | Keywords: | Wood Circular Saw Disc |
Usage: | Cut Ceramic, Wood, Hard Wood Material Cutting | Blade Thickness: | 0.014in, 0.032in, 0.05in, 0.02in, 0.035in, 0.018in, 0.042in, 0.025in, Customized |
Teeths: | 140, 144, Customized | Process Type: | HOT PRESS, High Frequency Welded, Laser Welded, Cold PRESS, Customized |
Suitable Machine: | Circular Saw, Miter Saw, Table Saw, Radial Arm Saw | Blade Material: | TCT, Alloy, Diamond, Tungsten Carbide Steel, HSS |
Warranty: | 1 Year, One Year, 12 Months | ||
Highlight: | 405mm hot saw blades,hot saw blade Tungsten Carbide Steel 405mm,405mm 20 inch saw blade 140T |

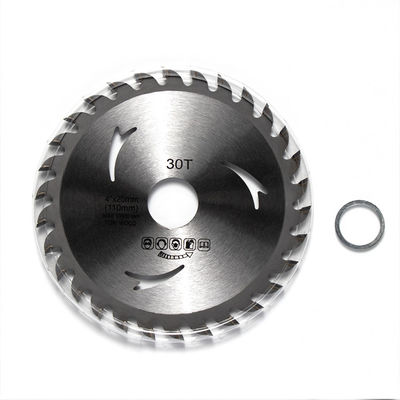

TCT Saw Blade For Cutting Wind Energy Composites
When you use the correct blade for your circular saw, you can ensure a cleaner finish. In regard to TCT blades,whey provide:
No dust production
Reduced production of sparks
Less production of burrs
Reduction in discolouration
The above allows you to make more refined cuts without the associated mess or hassle. The lack of sparks, burrs, and dust also means that working with a TCT saw blade is often safer than with other types of blades that kick up dust or sparks. That being said, you should still wear safety goggles and follow circular or mitre saw best practices to avoid the risk of injury.
产品编码 | 外径 | 齿宽 | 锯身厚度 | 内孔 | 齿数 | 切削角 | 齿型 | 定位孔 |
ID | D (mm) | B (mm) | b (mm) | d (mm) | Z | α | T-type | Positioning hole |
C3001F01 | 300 | 4 | 3 | 30 | 60 | 15 | TP | |
C3052A02 | 300 | 4 | 3 | 30 | 72 | 15 | TP | |
C3052B02 | 300 | 4 | 3 | 80 | 72 | 15 | TP | |
C3029B03 | 300 | 4 | 3 | 30 | 96 | 15 | TP | 2/15/110+4/9/100 |
C3029C02 | 300 | 4 | 3 | 75 | 96 | 15 | TP | |
C3001F02 | 300 | 4.4 | 3.2 | 30 | 60 | 15 | TP | |
C3001D01 | 300 | 4.4 | 3.2 | 80 | 60 | 15 | TP | |
C3052A01 | 300 | 4.4 | 3.2 | 30 | 72 | 15 | TP | 2/15/110+4/9/100 |
C3052B01 | 300 | 4.4 | 3.2 | 80 | 72 | 15 | TP | |
C3029B02 | 300 | 4.4 | 3.2 | 30 | 96 | 15 | TP | 2/15/110+4/9/100 |
C3029C01 | 300 | 4.4 | 3.2 | 75 | 96 | 15 | TP | |
C3029A01 | 300 | 4.4 | 3.2 | 80 | 96 | 15 | TP | |
C3023B01 | 350 | 4 | 3 | 30 | 72 | 15 | TP | |
C3023A01 | 350 | 4 | 3 | 60 | 72 | 15 | TP | |
C3023F01 | 350 | 4.4 | 3.2 | 25.4 | 72 | 15 | TP | 2/15/100 |
C3023B03 | 350 | 4.4 | 3.2 | 30 | 72 | 15 | TP | |
C3023A02 | 350 | 4.4 | 3.2 | 60 | 72 | 15 | TP | |
C3023C01 | 350 | 4.4 | 3.2 | 75 | 72 | 15 | TP | 2/15/100 |
C3023D03 | 350 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 4/15/105 |
C3005C03 | 350 | 4 | 3 | 30 | 84 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
C3005A02 | 350 | 4 | 3 | 60 | 84 | 15 | TP | 2/15/100 |
C3005D01 | 350 | 4.4 | 3.2 | 25.4 | 84 | 15 | TP | |
C3005C01 | 350 | 4.4 | 3.2 | 30 | 84 | 15 | TP | |
C3005A01 | 350 | 4.4 | 3.2 | 60 | 84 | 15 | TP | 2/15/100 |
C3005B01 | 350 | 4.4 | 3.2 | 75 | 84 | 15 | TP | 4/15/105 |
C3005E03 | 350 | 4.4 | 3.2 | 80 | 84 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
C3033A01 | 350 | 4.4 | 3.2 | 25.4 | 96 | 15 | TP | |
C3033D01 | 350 | 4.4 | 3.2 | 30 | 96 | 15 | TP | |
C3033B01 | 350 | 4.4 | 3.2 | 60 | 96 | 15 | TP | 4/15/100 |
C3033F01 | 350 | 4.4 | 3.2 | 75 | 96 | 15 | TP | 4/15/105 |
C3033C01 | 350 | 4.4 | 3.2 | 80 | 96 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
C3009D01 | 380 | 4.4 | 3.2 | 30 | 72 | 15 | TP | |
C3009A03 | 380 | 4.4 | 3.2 | 60 | 72 | 15 | TP | 2/15/100 |
C3009C01 | 380 | 4.4 | 3.2 | 75 | 72 | 15 | TP | 4/15/105 |
C3009E01 | 380 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
C3004D01 | 380 | 4.4 | 3.2 | 30 | 84 | 15 | TP | |
C3004A02 | 380 | 4.4 | 3.2 | 60 | 84 | 15 | TP | 2/15/100 |
C3004E01 | 380 | 4.4 | 3.2 | 80 | 84 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
C3041A01 | 380 | 4.4 | 3.2 | 30 | 96 | 15 | TP | |
C3041B01 | 380 | 4.4 | 3.2 | 60 | 96 | 15 | TP | 2/15/100 |
C3041C01 | 380 | 4.4 | 3.2 | 75 | 96 | 15 | TP | 4/15/105 |
C3041D01 | 380 | 4.4 | 3.2 | 80 | 96 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
C3009A01 | 380 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/15/100 |
C3009E02 | 380 | 4.8 | 3.6 | 80 | 72 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
C3004A01 | 380 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/15/100 |
C3004E02 | 380 | 4.8 | 3.6 | 80 | 84 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
C3041B02 | 380 | 4.8 | 3.6 | 60 | 96 | 15 | TP | 2/15/100 |
C3041D02 | 380 | 4.8 | 3.6 | 80 | 96 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
C4007C02 | 400 | 4.4 | 3.2 | 30 | 72 | 15 | TP | |
C4007A01 | 400 | 4.4 | 3.2 | 60 | 72 | 15 | TP | 2/15/100 |
C4007B01 | 400 | 4.4 | 3.2 | 75 | 72 | 15 | TP | 4/15/105 |
C4007D01 | 400 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 4/19/120+2/9/130 |
C4002F01 | 400 | 4.4 | 3.2 | 30 | 84 | 15 | TP | |
C4002A01 | 400 | 4.4 | 3.2 | 60 | 84 | 15 | TP | 2/15/100 |
C4002B01 | 400 | 4.4 | 3.2 | 75 | 84 | 15 | TP | 4/15/105 |
C4002E02 | 400 | 4.4 | 3.2 | 80 | 84 | 15 | TP | 4/19/120+2/9/130 |
C4003B01 | 400 | 4.4 | 3.2 | 60 | 96 | 15 | TP | 2/15/100 |
C4003C01 | 400 | 4.4 | 3.2 | 75 | 96 | 15 | TP | 4/15/105 |
C4003D01 | 400 | 4.4 | 3.2 | 80 | 96 | 15 | TP | 4/19/120+2/9/130 |
C4007E01 | 400 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/15/100+2/15/125 |
C4007B02 | 400 | 4.8 | 3.6 | 75 | 72 | 15 | TP | 4/15/105 |
C4002C02 | 400 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/15/100+2/15/125 |
C4015B01 | 430 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 4/19/120+2/9/130 |
C4004A01 | 430 | 4.4 | 3.2 | 75 | 96 | 15 | TP | 4/15/105 |
C4004A02 | 430 | 4.8 | 3.6 | 75 | 96 | 15 | TP | 4/15/105 |
C4004B01 | 430 | 4.8 | 3.6 | 80 | 96 | 15 | TP | 4/19/120+2/9/130 |
C4008A01 | 450 | 4.4 | 3.2 | 30 | 72 | 15 | TP | 2/13/94 |
C4008B01 | 450 | 4.4 | 3.2 | 60 | 72 | 15 | TP | 2/10/80+2/15/125 |
C4008C01 | 450 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 2/9/130+4/19/120 |
C4001A02 | 450 | 4.4 | 3.2 | 60 | 84 | 15 | TP | 2/10/80+2/15/125 |
C4001B01 | 450 | 4.4 | 3.2 | 75 | 84 | 15 | TP | 4/15/105 |
C4001C01 | 450 | 4.4 | 3.2 | 80 | 84 | 15 | TP | 2/9/130+4/19/120 |
C4008A02 | 450 | 4.8 | 3.6 | 30 | 72 | 15 | TP | 2/13/94 |
C4008B02 | 450 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/10/80+2/15/125 |
C4008C02 | 450 | 4.8 | 3.6 | 80 | 72 | 15 | TP | 2/9/130+4/19/120 |
C4001A01 | 450 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/10/80+2/15/125 |
C4001C02 | 450 | 4.8 | 3.6 | 80 | 84 | 15 | TP | 2/9/130+4/19/120 |
C4018A01 | 450 | 4.8 | 3.6 | 60 | 96 | 15 | TP | 2/10/80+2/15/125 |
C4018B01 | 450 | 4.8 | 3.6 | 80 | 96 | 15 | TP | 2/9/130+4/19/120 |
C4019B01 | 480 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/11/115+2/19/120 |
C4019A01 | 480 | 4.8 | 3.6 | 80 | 72 | 15 | TP | 2/9/130+4/19/120 |
C4020A01 | 480 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/11/115+2/19/120 |
C4020B01 | 480 | 4.8 | 3.6 | 80 | 84 | 15 | TP | 2/9/130+4/19/120 |
C5001A01 | 500 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/11/115 |
C5002A01 | 500 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/11/115 |
C5003A01 | 520 | 4.8 | 3.6 | 30 | 72 | 15 | TP | 2/13/94 |
C5003B01 | 520 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/11/115+2/19/120 |
C5004A01 | 520 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/11/115+2/19/120 |
C6002A01 | 600 | 5.8 | 4 | 60 | 60 | 15 | TP | 2/11/115+2/19/120 |
C6003A01 | 600 | 5.8 | 4 | 60 | 72 | 15 | TP | 2/11/115+2/19/120 |
C6001A01 | 730 | 7 | 5.2 | 80 | 70 | 18 | TP | 2/17/110 |
Jiangsu Songpu Intelligent Equipment Technology Co., Ltd. specializes in the production, sales and technical services of precision tools, customized equipment and parts. Its products are widely used in furniture, flooring, new composite materials, aviation, automobiles, machining and other fields.
Our company has a professional technical research and development team to provide customers with customized services. Focusing on the introduction of foreign advanced manufacturing technology, it maintains close contact with world-class raw and auxiliary material suppliers, allows Songpu to obtain market trends and industry information from time to time, and continuously improves its own technology level to ensure that product quality meets industry standards, and has passed the ISO9001 quality management system. Certification.
Since its establishment, the company has been adhering to the business tenet of "integrity, pragmatism and innovation", and is committed to becoming a technologically innovative service company as its vision. Now the products have been matched with well-known brand customers at home and abroad. Our company will continue to improve the user's production efficiency and reduce the user's production cost as its own responsibility.
